Billboard
LED Screen
Billboard LED Screen
LED billboards are one of the most effective and popular advertising media. Their large size allows for very high image resolution with greatn luminosity, capable of reproducing dynamic content immediately, and can withstand all types of inclement weather, they are placed in strategic and highly trafficked places, such as roads, roofs of buildings, intersections, parking lots and shopping centers.
Installation Type
- Traditional Installation
Key Features
Customizable Product
Fine Pixel Pitch
High Brightness
Easy Maintenance
Universal Module
Features
01
Platinum

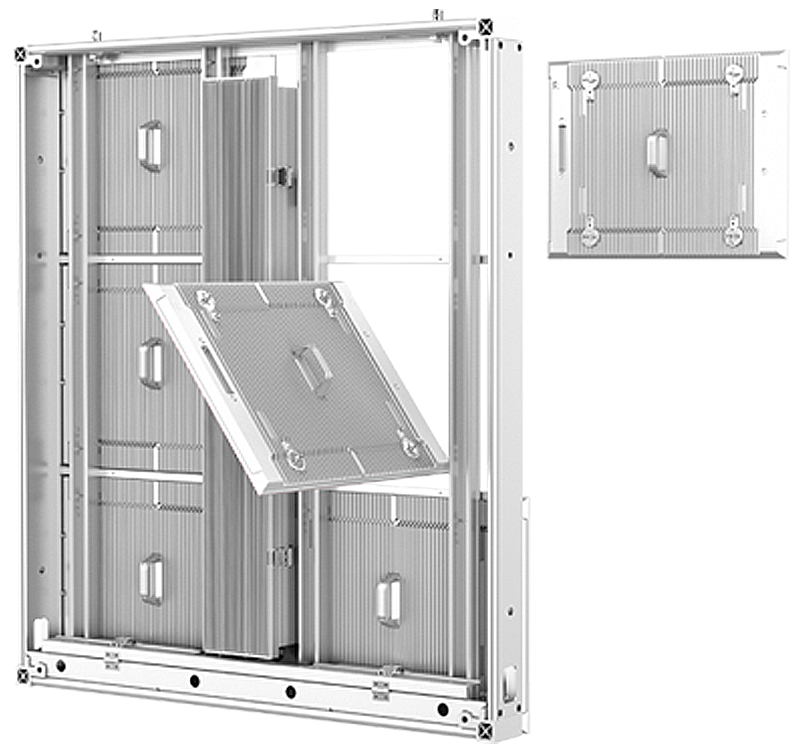

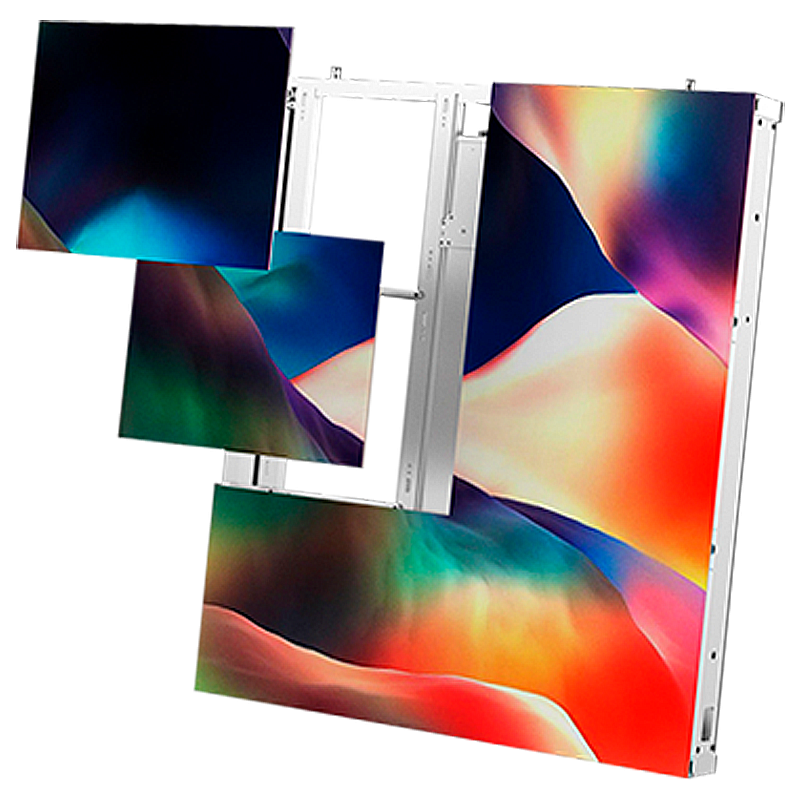

Pro SeriesFast Front and Back maintenance. Platinum pro modules designed with fast lock, it is easy to lock and unlock by a simple tool from both front or back.
02
Heat

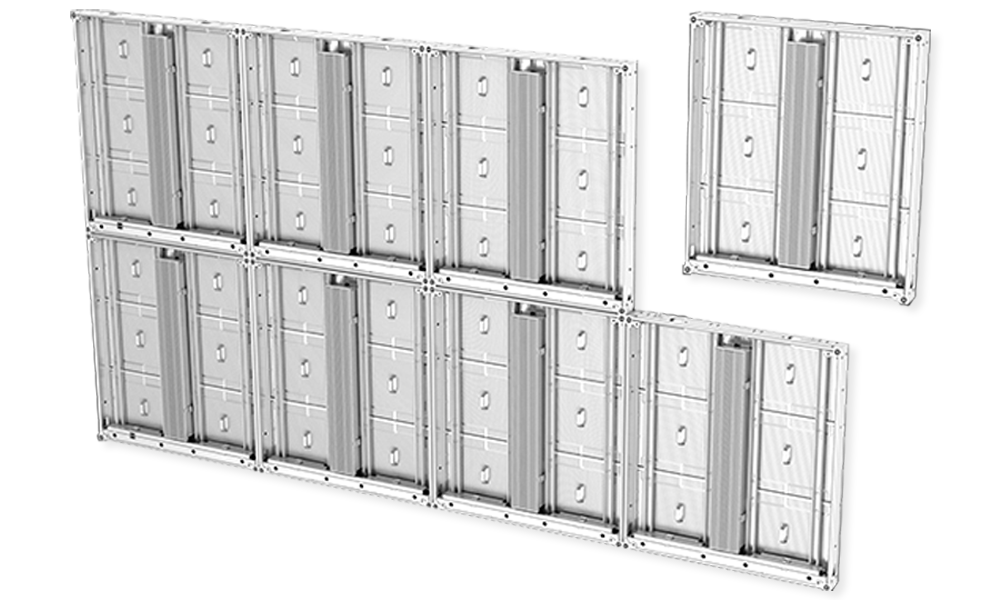

DissipationAluminum module chassis and panel frame accelerates heat dissipation. Heat sink design for module chassis and power supply unit improves heat dissipation Considerably. White color frame can reflect the sunlight to reduce the heat generated in the panel.
03
Cable Free

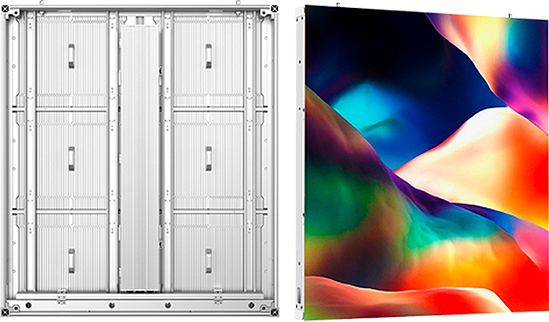

Back SideAll cables are hidden at the bottom of the cabinet, which makes the clean look and prevent disconnecting by accidents.
04
Protection Grade

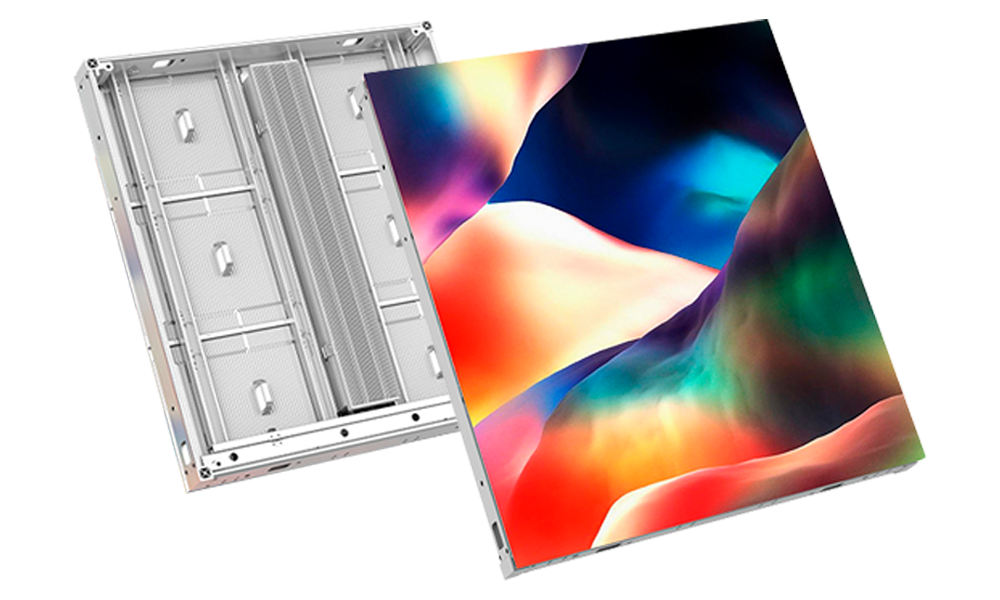

IP66 and Fanless Cooling SystemThe total cabinet is IP66 front and rear, tested by TUV. It will avoid any water entry from the outside. And the fanless cooling system will isolate dust and dirt and extend the lifespan of the electronic components inside.
05
Product
SizeDimension: 900*800*80mm. SMD outdoor 10,000 nits.

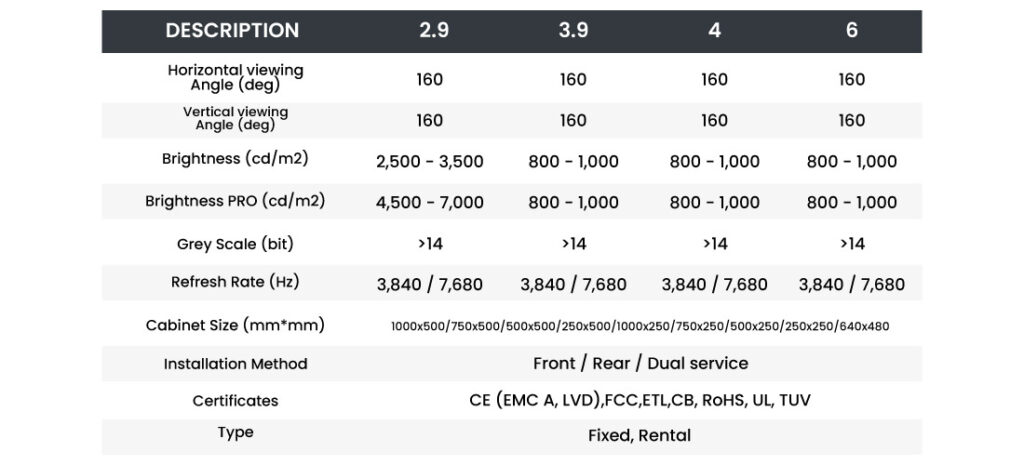

Panel Details
| Description | 2.9 | 3.9 | 4 | 6 |
|---|---|---|---|---|
| Horizontal viewing Angle (deg) | 160 | 160 | 160 | 160 |
| Vertical viewing Angle (deg) | 160 | 160 | 160 | 160 |
| Brightness (cd/m2) | 2,500 - 3,500 | 800 - 1,000 | 800 - 1,000 | 800 - 1,000 |
| Brightness PRO (cd/m2) | 4,500 - 7,000 | 800 - 1,000 | 800 - 1,000 | 800 - 1,000 |
| Grey Scale (bit) | >14 | >14 | >14 | >14 |
| Refresh Rate (Hz) | 3,840 / 7,680 | 3,840 / 7,680 | 3,840 / 7,680 | 3,840 / 7,680 |
- Horizontal viewing Angle (deg)
- 160
- Vertical viewing Angle (deg)
- 160
- Brightness (cd/m2)
- 2,500 - 3,500
- Brightness PRO (cd/m2)
- 4,500 - 7,000
- Grey Scale (bit)
- >14
- Refresh Rate (Hz)
- 3,840 / 7,680
- Cabinet Size (mm*mm)
- 1000x500
- 750x500
- 500x500
- 250x500
- 1000x250
- 750x250
- 500x250
- 250x250
- 640x480
- Installation Method
- Front / Rear / Dual service
- Certificates
- CE (EMC A, LVD), FCC, ETL, CB, RoHS, UL, TUV
- Type
- Fixed, Rental
